LMS5_Project08 C# WPF 프로젝트 - Resource Monitoring Tool

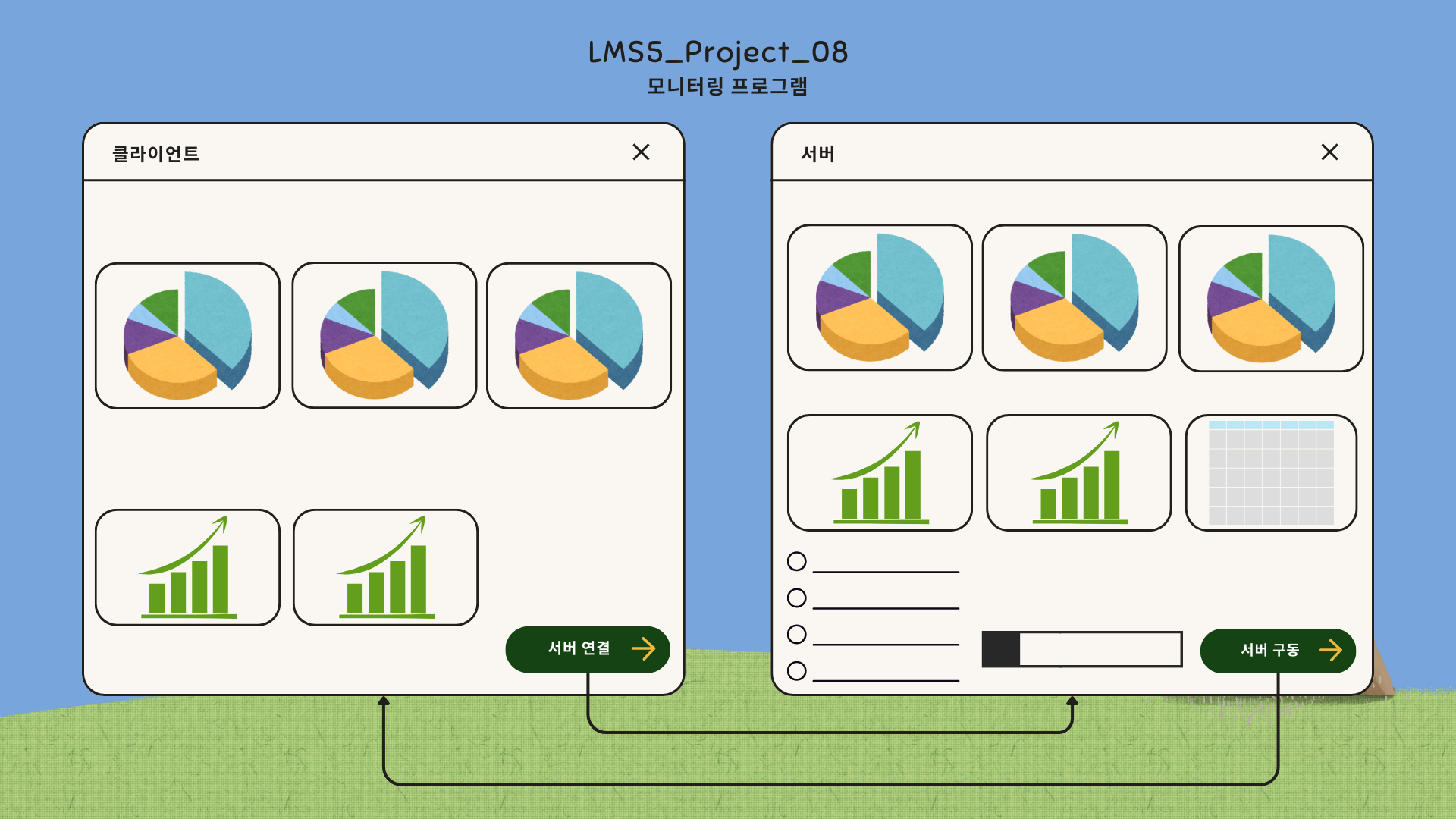

서버 - 클라이언트 연결



CPU 사용량 실시간 변동 확인





















프로젝트 파일 링크



https://github.com/kdoy99/LMS5_Project_08.git

GitHub - kdoy99/LMS5_Project_08





서버

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Linq;
using System.Net;
using System.Net.Sockets;
using System.Security.AccessControl;
using System.Security.Principal;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;

using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Markup;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
using LiveCharts;
using LiveCharts.Wpf;
using Newtonsoft.Json;

using SQLite;

namespace Server
{
    /// <summary>
    /// MainWindow.xaml에 대한 상호 작용 논리
    /// </summary>
    public partial class MainWindow : Window
    {
        Socket ServerSocket;
        Socket ClientSocket;

        // 메모리 차트용
        public SeriesCollection PieData { get; set; } // 바인딩 데이터 1 (파이 차트)
        public SeriesCollection memorySeries { get; set; } // 바인딩 데이터 2 (라인 차트)
        public ChartValues<double> memoryUsage { get; set; } // 라인 차트 바인딩 데이터 용 차트 밸류


        // CPU 차트용
        public SeriesCollection PieCPU { get; set; } // 바인딩 데이터 1 (파이 차트)
        public SeriesCollection cpuSeries { get; set; } // 바인딩 데이터 2 (라인 차트)
        public ChartValues<double> cpuUsage { get; set; } // 라인 차트 바인딩 데이터 용 차트 밸류

        // HDD 차트용
        public SeriesCollection PieHDD { get; set; } // 바인딩 데이터 (파이 차트)

        private double cpuFree;

        List<Data> dataList;

        public MainWindow()
        {
            InitializeComponent();

            // 메모리 변수 초기화
            memoryUsage = new ChartValues<double>();

            // Binding, 메모리 파이차트
            PieData = new SeriesCollection
            {
                new PieSeries
                {
                    Title = "사용 중",
                    Values = new ChartValues<double> { 0 },
                    DataLabels = true,
                    LabelPoint = chartPoint => $"{chartPoint.Y:F2} GB"
                },
                new PieSeries
                {
                    Title = "남은 공간",
                    Values = new ChartValues<double> { 100 },
                    DataLabels = true,
                    LabelPoint = chartPoint => $"{chartPoint.Y:F2} GB"
                }
            };

            // Binding, 메모리 라인차트
            memorySeries = new SeriesCollection
            {
                new LineSeries
                {
                    Title = "Memory 사용량 (GB)",
                    Values = memoryUsage,
                    PointGeometry = DefaultGeometries.Circle,
                    PointGeometrySize = 5
                }
            };

            // CPU 변수 초기화
            cpuUsage = new ChartValues<double>();

            // Binding, CPU 파이차트
            PieCPU = new SeriesCollection
            {
                new PieSeries
                {
                    Title = "사용 중",
                    Values = new ChartValues<double> { 0 },
                    DataLabels = true,
                    LabelPoint = chartPoint => $"{chartPoint.Y:F2}%"
                },
                new PieSeries
                {
                    Title = "남은 공간",
                    Values = new ChartValues<double> { 100 },
                    DataLabels = true,
                    LabelPoint = chartPoint => $"{chartPoint.Y:F2}%"
                }
            };

            // Binding, CPU 라인차트
            cpuSeries = new SeriesCollection
            {
                new LineSeries
                {
                    Title = "CPU 사용량 (%)",
                    Values = cpuUsage,
                    PointGeometry = DefaultGeometries.Circle,
                    PointGeometrySize = 5
                }
            };

            // Binding, HDD 파이차트
            PieHDD = new SeriesCollection
            {
                new PieSeries
                {
                    Title = "사용 중",
                    Values = new ChartValues<long>{ 0 },
                    DataLabels = true,
                    LabelPoint = chartPoint => $"{chartPoint.Y:F2} GB"
                },
                new PieSeries
                {
                    Title = "남은 공간",
                    Values = new ChartValues<long>{ 100 },
                    DataLabels = true,
                    LabelPoint = chartPoint => $"{chartPoint.Y:F2} GB"
                }
            };

            DataContext = this;

            ReadNoticeDB();
        }
        private void ReadNoticeDB()
        {
            using (SQLiteConnection connection = new SQLiteConnection(App.databasePath)) // databasePath : Notice 정보 들어있는 DB
            {
                connection.CreateTable<Data>();
                dataList = connection.Query<Data>("SELECT * FROM Data ORDER BY RANDOM() LIMIT 30");
            }

            if (dataList != null)
            {
                HistoryList.ItemsSource = dataList;
            }
        }

        private void Button_Click(object sender, RoutedEventArgs e)
        {
            ServerSocket = new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp);
            var endPoint = new IPEndPoint(IPAddress.Any, Convert.ToInt32(portBox.Text));
            ServerSocket.Bind(endPoint);
            ServerSocket.Listen(10);
            AcceptClient();
        }

        private void AcceptClient()
        {
            var args = new SocketAsyncEventArgs();
            args.Completed += ClientAccepted;

            ServerSocket.AcceptAsync(args);
            AddLog("서비스가 시작되었습니다.");
        }

        private void ClientAccepted(object sender, SocketAsyncEventArgs e)
        {
            // 클라이언트와 연결 완료
            AddLog("클라이언트와 연결되었습니다.");
            // 클라이언트를 상대하기 위해서 동적으로 생성된 소켓을
            // 멤버변수에 저장
            ClientSocket = e.AcceptSocket;
            ReceiveInfo();
        }

        private void ReceiveInfo()
        {
            var args = new SocketAsyncEventArgs();
            args.SetBuffer(new byte[1024], 0, 1024);
            args.Completed += DataReceived;
            ClientSocket.ReceiveAsync(args);
        }

        private void DataReceived(object sender, SocketAsyncEventArgs e)
        {
            //1. 도착한 바이트 배열을 Json 문자열로 변환
            string json = Encoding.UTF8.GetString(e.Buffer, 0, e.BytesTransferred);

            //2. Json 문자열을 객체로 역직렬화
            try
            {
                var deviceinfo = JsonConvert.DeserializeObject<Data>(json);

                AddLog(json);

                //3. 객체의 내용을 UI에 반영
                RefreshDeviceInfo(deviceinfo);
            }
            catch { }

            //4. 다시 수신 작업 수행
            ReceiveInfo();
        }

        private void RefreshDeviceInfo(Data data)
        {
            // 여기에 차트값들 집어넣기
            Action action = () =>
            {
                double percent = (data.RemainMemory / data.TotalMemory) * 100;

                TotalMemory.Text = "총 메모리 (GB) : " + data.TotalMemory.ToString("F2");
                FreeMemory.Text = "사용 가능한 메모리 (GB) : " + data.FreeMemory.ToString("F2");
                RemainMemory.Text = "사용 중인 메모리 (GB) : " + data.RemainMemory.ToString("F2");
                MemoryTitle.Text = "메모리 사용량 (%) : " + percent.ToString("F2");
                MemoryBar.Value = percent;

                // memory 파이 차트 업데이트
                PieData[0].Values[0] = data.RemainMemory;
                PieData[1].Values[0] = data.FreeMemory;

                // memory 라인 차트 업데이트
                memoryUsage.Add(Math.Round(data.RemainMemory, 2));
                if (memoryUsage.Count > 60)
                    memoryUsage.RemoveAt(0);

                // CPU 용 데이터 변수 지정
                cpuFree = 100 - data.cpuValueData;

                // CPU 파이 차트 업데이트
                PieCPU[0].Values[0] = Math.Round(data.cpuValueData, 2);
                PieCPU[1].Values[0] = Math.Round(cpuFree, 2);

                // CPU 라인 차트 업데이트
                cpuUsage.Add(Math.Round(data.cpuValueData, 2));

                // 데이터 포인트 수 제한
                if (cpuUsage.Count > 60)
                    cpuUsage.RemoveAt(0);

                // HDD 파이 차트 업데이트
                PieHDD[0].Values[0] = data.useSize;
                PieHDD[1].Values[0] = data.freeSize;
                HDD_Name.Text = $"HDD 사용량 ({data.HDDname})";

                // 지정된 경로에 생성할 DB 연결 객체 생성
                using (SQLiteConnection connection = new SQLiteConnection(App.databasePath))
                {
                    // Data 클래스 정의를 기반으로 SQLite DB Table 생성 (테이블이 없을 경우, 있으면 X)
                    connection.CreateTable<Data>();

                    // UI 컨트롤에 입력된 데이터를 data 객체 형태로, 생성한 SQLite DB Table에 삽입
                    connection.Insert(data);


                }

            };

            Dispatcher.Invoke(action);
        }

        private void AddLog(string log)
        {
            //메인 스레드에서 UI 속성을 접근하는 로직이 수행되도록 위임
            Action action = () => { txtLog.AppendText(log + "\r\n"); };
            Dispatcher.Invoke(action);
        }


    }
}



서버 XAML

<Window x:Class="Server.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:Server"
        xmlns:lvc="clr-namespace:LiveCharts.Wpf;assembly=LiveCharts.Wpf"
        mc:Ignorable="d"
        Title="MainWindow" Height="600" Width="900">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="2*"/>
            <RowDefinition Height="10*"/>
            <RowDefinition Height="10*"/>
            <RowDefinition Height="5*"/>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="2*"/>
            <ColumnDefinition Width="2*"/>
            <ColumnDefinition Width="*"/>
            <ColumnDefinition Width="*"/>
        </Grid.ColumnDefinitions>

        <Grid>
            <TextBlock TextWrapping="Wrap" Text="Memory 사용량" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="20" FontWeight="Bold"/>
        </Grid>

        <Grid Grid.Column="1">
            <TextBlock TextWrapping="Wrap" Text="CPU 사용량" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="20" FontWeight="Bold"/>
        </Grid>

        <Grid Grid.Column="2" Grid.ColumnSpan="2">
            <TextBlock x:Name="HDD_Name" TextWrapping="Wrap" Text="HDD 사용량" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="20" FontWeight="Bold"/>
        </Grid>

        <Grid Grid.Row="1" Grid.Column="0">
            <lvc:PieChart x:Name="MemoryChart" Margin="20,20,20,20" Series="{Binding PieData}">
                <lvc:PieChart.LegendLocation>
                    Right
                </lvc:PieChart.LegendLocation>
            </lvc:PieChart>
        </Grid>

        <Grid Grid.Row="1" Grid.Column="1">
            <lvc:PieChart x:Name="CPUChart" Margin="20,20,20,20" Series="{Binding PieCPU}">
                <lvc:PieChart.LegendLocation>
                    Right
                </lvc:PieChart.LegendLocation>
            </lvc:PieChart>
        </Grid>

        <Grid Grid.Row="1" Grid.Column="2" Grid.ColumnSpan="2">
            <lvc:PieChart x:Name="HDDChart" Margin="20,20,20,20" Series="{Binding PieHDD}">
                <lvc:PieChart.LegendLocation>
                    Right
                </lvc:PieChart.LegendLocation>
            </lvc:PieChart>
        </Grid>

        <Grid Grid.Row="2">
            <lvc:CartesianChart Series="{Binding memorySeries}" Margin="20,20,20,20">
                <lvc:CartesianChart.AxisX>
                    <lvc:Axis Title="시간(초)" />
                </lvc:CartesianChart.AxisX>
                <lvc:CartesianChart.AxisY>
                    <lvc:Axis Title="Memory 사용량 (GB)" MinValue="0" MaxValue="16" />
                </lvc:CartesianChart.AxisY>
            </lvc:CartesianChart>
        </Grid>

        <Grid Grid.Row="2" Grid.Column="1">
            <lvc:CartesianChart Series="{Binding cpuSeries}" Margin="20,20,20,20">
                <lvc:CartesianChart.AxisX>
                    <lvc:Axis Title="시간(초)" />
                </lvc:CartesianChart.AxisX>
                <lvc:CartesianChart.AxisY>
                    <lvc:Axis Title="CPU 사용량 (%)" MinValue="0" MaxValue="100" />
                </lvc:CartesianChart.AxisY>
            </lvc:CartesianChart>
        </Grid>

        <Grid Grid.Row="2" Grid.Column="2" Grid.ColumnSpan="2">
            <ListView x:Name="HistoryList" d:ItemsSource="{d:SampleData ItemCount=30}" Margin="10,40,10,10">
                <ListView.ItemTemplate>
                    <DataTemplate>
                        <StackPanel>
                            <TextBlock FontSize="10" FontWeight="Bold">
                                <Run Text="{Binding LogNumber}" />
                                <Run Text="번째 데이터" />
                            </TextBlock>
                            <TextBlock FontSize="8" FontWeight="Bold" Foreground="Blue">
                                <Run Text="총 메모리 (GB) : " />
                                <Run Text="{Binding TotalMemory}" />
                            </TextBlock>
                            <TextBlock FontSize="8" FontWeight="Bold" Foreground="Blue">
                                <Run Text="남은 메모리 (GB) : " />
                                <Run Text="{Binding FreeMemory}" />
                            </TextBlock>
                            <TextBlock FontSize="8" FontWeight="Bold" Foreground="Blue">
                                <Run Text="사용중인 메모리 (GB) : " />
                                <Run Text="{Binding RemainMemory}" />
                            </TextBlock>
                            <TextBlock FontSize="8" FontWeight="Bold" Foreground="Blue">
                                <Run Text="CPU 사용량 (%) : " />
                                <Run Text="{Binding cpuValueData}" />
                            </TextBlock>
                            <TextBlock FontSize="8" FontWeight="Bold" Foreground="Blue">
                                <Run Text="HDD 이름 : " />
                                <Run Text="{Binding HDDname}" />
                            </TextBlock>
                            <TextBlock FontSize="8" FontWeight="Bold" Foreground="Blue">
                                <Run Text="HDD 용량 : " />
                                <Run Text="{Binding totalSize}" />
                            </TextBlock>
                            <TextBlock FontSize="8" FontWeight="Bold" Foreground="Blue">
                                <Run Text="HDD 남은 용량 : " />
                                <Run Text="{Binding freeSize}" />
                            </TextBlock>
                            <TextBlock FontSize="8" FontWeight="Bold" Foreground="Blue">
                                <Run Text="HDD 사용중인 용량 : " />
                                <Run Text="{Binding useSize}" />
                            </TextBlock>
                        </StackPanel>
                    </DataTemplate>
                </ListView.ItemTemplate>
            </ListView>
            <TextBlock Margin="0,10,0,0" TextWrapping="Wrap" Text="이전 데이터 로그" VerticalAlignment="Top" HorizontalAlignment="Center" FontWeight="Bold" FontSize="20"/>
        </Grid>

        <Grid Grid.Row="3" Grid.Column="0">
            <TextBox x:Name="TotalMemory" TextWrapping="Wrap" Text="총 메모리 (GB) : " VerticalAlignment="Top"  IsReadOnly="True" Margin="10,0,10,0"/>
            <TextBox x:Name="FreeMemory" TextWrapping="Wrap" Text="사용 가능한 메모리 (GB) : " VerticalAlignment="Top" IsReadOnly="True" Margin="10,20,10,0"/>
            <TextBox x:Name="RemainMemory" TextWrapping="Wrap" Text="사용 중인 메모리 (GB) : " VerticalAlignment="Top" IsReadOnly="True" Margin="10,40,10,0"/>
            <TextBox x:Name="MemoryTitle" TextWrapping="Wrap" Text="메모리 사용량 (%) : " VerticalAlignment="Top" IsReadOnly="True" Margin="10,60,10,0"/>
            <ProgressBar x:Name="MemoryBar" Margin="10,80,10,5"/>
        </Grid>

        <Grid Grid.Row="3" Grid.Column="3">
            <Button Content="서버 구동" Margin="10,0,10,40" Click="Button_Click" FontSize="24" FontWeight="Bold" />
            <TextBox x:Name="portBox" TextWrapping="Wrap" Text="10004" VerticalAlignment="Bottom" Margin="50,0,10,10"/>
            <Label Content="Port" HorizontalAlignment="Left" VerticalAlignment="Bottom" Margin="10,0,0,5"/>

        </Grid>

        <Grid Grid.Row="3" Grid.Column="1" Grid.ColumnSpan="2">
            <TextBox x:Name="txtLog" TextWrapping="Wrap" Margin="10,0,10,5" />
        </Grid>
    </Grid>
</Window>







클라이언트

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
using System.Diagnostics;
using System.Threading;
using System.Management;

using LiveCharts;
using LiveCharts.Wpf;
using System.Collections.ObjectModel;
using System.Net.Sockets;
using System.Windows.Threading;
using System.Text.Json.Serialization;
using Newtonsoft.Json;
using System.Net;
using System.Timers;
using System.IO;

namespace Client
{
    public partial class MainWindow : Window
    {
        // 클라이언트 소켓
        Socket ClientSocket;

        // 타이머 변수 만들기
        public DispatcherTimer timer = new DispatcherTimer();

        // 데이터 변수
        // 메모리
        private double total_memory;
        private double free_memory;
        private double remain_memory;
        // CPU
        private double cpuValue;
        // HDD
        private string HDDName;
        private long TotalSize;
        private long FreeSize;
        private long UseSize;

        // 메모리 차트용
        public SeriesCollection PieData { get; set; } // 바인딩 데이터 1 (파이 차트)
        public SeriesCollection memorySeries { get; set; } // 바인딩 데이터 2 (라인 차트)
        public ChartValues<double> memoryUsage { get; set; } // 라인 차트 바인딩 데이터 용 차트 밸류


        // CPU 차트용
        public SeriesCollection PieCPU { get; set; } // 바인딩 데이터 1 (파이 차트)
        public SeriesCollection cpuSeries { get; set; } // 바인딩 데이터 2 (라인 차트)
        public ChartValues<double> cpuUsage { get; set; } // 라인 차트 바인딩 데이터 용 차트 밸류

        private PerformanceCounter cpuCounter; // CPU 파이 차트용

        // HDD 차트용
        public SeriesCollection PieHDD { get; set; } // 바인딩 데이터 (파이 차트)


        public MainWindow()
        {
            InitializeComponent();

            // Memory 변수 초기화
            memoryUsage = new ChartValues<double>();

            // Binding, 메모리 파이차트
            PieData = new SeriesCollection
            {
                new PieSeries
                {
                    Title = "사용 중",
                    Values = new ChartValues<double> { 0 },
                    DataLabels = true,
                    LabelPoint = chartPoint => $"{chartPoint.Y:F2} GB"
                },
                new PieSeries
                {
                    Title = "남은 공간",
                    Values = new ChartValues<double> { 100 },
                    DataLabels = true,
                    LabelPoint = chartPoint => $"{chartPoint.Y:F2} GB"
                }
            };

            // Binding, 메모리 라인차트
            memorySeries = new SeriesCollection
            {
                new LineSeries
                {
                    Title = "Memory 사용량 (GB)",
                    Values = memoryUsage,
                    PointGeometry = DefaultGeometries.Circle,
                    PointGeometrySize = 5
                }
            };

            // CPU 변수 초기화
            cpuUsage = new ChartValues<double>();

            // Binding, CPU 파이차트
            PieCPU = new SeriesCollection
            {
                new PieSeries
                {
                    Title = "사용 중",
                    Values = new ChartValues<double> { 0 },
                    DataLabels = true,
                    LabelPoint = chartPoint => $"{chartPoint.Y:F2}%"
                },
                new PieSeries
                {
                    Title = "남은 공간",
                    Values = new ChartValues<double> { 100 },
                    DataLabels = true,
                    LabelPoint = chartPoint => $"{chartPoint.Y:F2}%"
                }
            };

            // Binding, CPU 라인차트
            cpuSeries = new SeriesCollection
            {
                new LineSeries
                {
                    Title = "CPU 사용량 (%)",
                    Values = cpuUsage,
                    PointGeometry = DefaultGeometries.Circle,
                    PointGeometrySize = 5
                }
            };

            // 퍼포먼스 카운터 초기화 및 미리 호출
            cpuCounter = new PerformanceCounter("Processor", "% Processor Time", "_Total");
            cpuCounter.NextValue();


            // Binding, HDD 파이차트
            PieHDD = new SeriesCollection
            {
                new PieSeries
                {
                    Title = "사용 중",
                    Values = new ChartValues<long>{ 0 },
                    DataLabels = true,
                    LabelPoint = chartPoint => $"{chartPoint.Y:F2} GB"
                },
                new PieSeries
                {
                    Title = "남은 공간",
                    Values = new ChartValues<long>{ 100 },
                    DataLabels = true,
                    LabelPoint = chartPoint => $"{chartPoint.Y:F2} GB"
                }
            };

            DataContext = this;
        }

        private void memoryUpdate()
        {
            // 컴퓨터 메모리 데이터 불러오고 텍스트 박스에 저장함
            ManagementClass cls = new ManagementClass("Win32_OperatingSystem");
            ManagementObjectCollection instances = cls.GetInstances();

            foreach (ManagementObject info in instances)
            {
                total_memory = double.Parse(info["TotalVisibleMemorySize"].ToString()) / (1024 * 1024);
                free_memory = double.Parse(info["FreePhysicalMemory"].ToString()) / (1024 * 1024);
                remain_memory = total_memory - free_memory;
            }

            // HDD 정보
            DriveInfo[] hddDrives = DriveInfo.GetDrives();

            foreach (DriveInfo drive in hddDrives)
            {
                if (drive.DriveType == DriveType.Fixed)
                {
                    HDDName = drive.Name.ToString();
                    TotalSize = drive.TotalSize / 1024 / 1024 / 1024;
                    FreeSize = drive.AvailableFreeSpace / 1024 / 1024 / 1024;
                    UseSize = (drive.TotalSize - drive.AvailableFreeSpace) / 1024 / 1024 / 1024;
                }
            }

            // memory 파이 차트 업데이트
            PieData[0].Values[0] = remain_memory;
            PieData[1].Values[0] = free_memory;

            // memory 라인 차트 업데이트
            memoryUsage.Add(Math.Round(remain_memory, 2));
            if (memoryUsage.Count > 60)
                memoryUsage.RemoveAt(0);

            // CPU 용 데이터 변수 지정
            cpuValue = cpuCounter.NextValue();
            double cpuFree = 100 - cpuValue;

            // CPU 파이 차트 업데이트
            PieCPU[0].Values[0] = Math.Round(cpuValue, 2);
            PieCPU[1].Values[0] = Math.Round(cpuFree, 2);

            // CPU 라인 차트 업데이트
            cpuUsage.Add(Math.Round(cpuValue, 2));

            // 데이터 포인트 수 제한
            if (cpuUsage.Count > 60)
                cpuUsage.RemoveAt(0);

            // HDD 파이 차트 업데이트
            PieHDD[0].Values[0] = UseSize;
            PieHDD[1].Values[0] = FreeSize;
            HDD_Name.Text = $"HDD 사용량 ({HDDName})";

        }

        private void ConnectButton_Click(object sender, RoutedEventArgs e)
        {
            int port = Convert.ToInt32(PortBox.Text); // PortBox 안에 있는 값을 port 변수에 저장
            ClientSocket = new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp);
            var endPoint = new IPEndPoint(IPAddress.Parse(IPBox.Text), port); // IP와 Port 값 따와서 사용
            var args = new SocketAsyncEventArgs();
            args.RemoteEndPoint = endPoint;
            args.Completed += ServerConnected;
            ClientSocket.ConnectAsync(args);
        }

        private void ServerConnected(object sender, SocketAsyncEventArgs e)
        {
            if (e.SocketError == SocketError.Success)
            {
                // 서버 연결 성공시 서버로부터 제어 요청 받기
                ReceiveControl();
            }
        }

        private void ReceiveControl()
        {
            var args = new SocketAsyncEventArgs();
            args.SetBuffer(new byte[1024], 0, 1024);
            args.Completed += ControlReceived;
            ClientSocket.ReceiveAsync(args);
        }

        private void ControlReceived(object sender, SocketAsyncEventArgs e)
        {
            string json = Encoding.UTF8.GetString(e.Buffer, 0, e.BytesTransferred);
            var control = JsonConvert.DeserializeObject<ClientData>(json);
        }

        private void timer_Tick(object sender, EventArgs e)
        {
            // 타이머 1번 발생 = timer_Tick
            memoryUpdate();
            SendDeviceInfo();
        }

        private void SendDeviceInfo()
        {
            // 소켓 O, 서버 연결 O 확인
            if (ClientSocket == null || !ClientSocket.Connected)
                return;

            try
            {
                // 1. 전송할 데이터 엔터티 객체에 준비
                var info = new ClientData
                {
                    // 메모리
                    TotalMemory = Math.Round(total_memory, 2),
                    FreeMemory = Math.Round(free_memory, 2),
                    RemainMemory = Math.Round(remain_memory, 2),
                    // CPU
                    cpuValueData = Math.Round(cpuValue, 2),
                    // HDD
                    HDDname = HDDName,
                    totalSize = TotalSize,
                    freeSize = FreeSize,
                    useSize = UseSize
                };

                // 2. 객체를 json 문자열로 직렬화
                string json = JsonConvert.SerializeObject(info);

                // 3. 문자열 byte 배열로 변환
                byte[] bytesToSend = Encoding.UTF8.GetBytes(json);

                // 4. SocketAsyncEventArgs 객체에 전송할 데이터 설정
                var args = new SocketAsyncEventArgs();
                args.SetBuffer(bytesToSend, 0, bytesToSend.Length);

                // 5. 비동기적으로 전송
                ClientSocket.SendAsync(args);
            }
            catch { }
        }
        // 클라이언트 창 로드될 때 발생되는 이벤트
        private void ClientWindow_Loaded(object sender, RoutedEventArgs e)
        {
            // 타이머 설정
            timer.Interval = TimeSpan.FromMilliseconds(1000); // 1초
            timer.Tick += new EventHandler(timer_Tick);
            timer.Start();
        }
    }
}



클라이언트 XAML

<Window x:Name="ClientWindow" x:Class="Client.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:Project08"
        xmlns:lvc="clr-namespace:LiveCharts.Wpf;assembly=LiveCharts.Wpf"

        mc:Ignorable="d"
        Title="MainWindow" Height="600" Width="900" Loaded="ClientWindow_Loaded">

    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="2*"/>
            <RowDefinition Height="14*"/>
            <RowDefinition Height="14*"/>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="*"/>
            <ColumnDefinition Width="*"/>
            <ColumnDefinition Width="*"/>
        </Grid.ColumnDefinitions>

        <Grid>
            <TextBlock TextWrapping="Wrap" Text="Memory 사용량" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="20" FontWeight="Bold"/>
        </Grid>

        <Grid Grid.Column="1">
            <TextBlock TextWrapping="Wrap" Text="CPU 사용량" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="20" FontWeight="Bold"/>
        </Grid>

        <Grid Grid.Column="2">
            <TextBlock x:Name="HDD_Name" TextWrapping="Wrap" Text="HDD 사용량" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="20" FontWeight="Bold"/>
        </Grid>

        <Grid Grid.Row="1">
            <lvc:PieChart x:Name="DataChart" Margin="20,20,20,20" Series="{Binding PieData}">
                <lvc:PieChart.LegendLocation>
                    Right
                </lvc:PieChart.LegendLocation>
            </lvc:PieChart>
        </Grid>

        <Grid Grid.Row="1" Grid.Column="1">
            <lvc:PieChart x:Name="CPUChart" Margin="20,20,20,20" Series="{Binding PieCPU}">
                <lvc:PieChart.LegendLocation>
                    Right
                </lvc:PieChart.LegendLocation>
            </lvc:PieChart>
        </Grid>

        <Grid Grid.Row="1" Grid.Column="2">
            <lvc:PieChart x:Name="HDDChart" Margin="20,20,20,20" Series="{Binding PieHDD}">
                <lvc:PieChart.LegendLocation>
                    Right
                </lvc:PieChart.LegendLocation>
            </lvc:PieChart>
        </Grid>

        <Grid Grid.Row="2">
            <lvc:CartesianChart Series="{Binding memorySeries}" Margin="20,20,20,20">
                <lvc:CartesianChart.AxisX>
                    <lvc:Axis Title="시간(초)" />
                </lvc:CartesianChart.AxisX>
                <lvc:CartesianChart.AxisY>
                    <lvc:Axis Title="Memory 사용량 (GB)" MinValue="0" MaxValue="16" />
                </lvc:CartesianChart.AxisY>
            </lvc:CartesianChart>
        </Grid>

        <Grid Grid.Column="1" Grid.Row="2">
            <lvc:CartesianChart Series="{Binding cpuSeries}" Margin="20,20,20,20">
                <lvc:CartesianChart.AxisX>
                    <lvc:Axis Title="시간(초)" />
                </lvc:CartesianChart.AxisX>
                <lvc:CartesianChart.AxisY>
                    <lvc:Axis Title="CPU 사용량 (%)" MinValue="0" MaxValue="100" />
                </lvc:CartesianChart.AxisY>
            </lvc:CartesianChart>
        </Grid>

        <Grid Grid.Column="2" Grid.Row="2">
            <Button x:Name="ConnectButton" Content="서버 연결" HorizontalAlignment="Right" VerticalAlignment="Bottom" Click="ConnectButton_Click" Margin="0,0,10,10" FontSize="24" FontWeight="Bold" Height="47" Width="131"/>
            <TextBox x:Name="IPBox" TextWrapping="Wrap" Text="127.0.0.1" HorizontalAlignment="Right" VerticalAlignment="Bottom" Width="95" Margin="0,0,158,39"/>
            <Label Content="IP" HorizontalAlignment="Right" VerticalAlignment="Bottom" Margin="0,0,263,37"/>
            <TextBox x:Name="PortBox" HorizontalAlignment="Right" TextWrapping="Wrap" Text="10004" VerticalAlignment="Bottom" Width="95" Margin="0,0,158,9"/>
            <Label Content="Port" HorizontalAlignment="Right" VerticalAlignment="Bottom" Margin="0,0,258,7"/>
        </Grid>


    </Grid>
</Window>



그 외 파일은 Git에서 확인 가능





사용한 패키지



서버 : LiveCharts, LiveCharts.Wpf, Newtonsoft.Json, sqlite-net-pcl

클라이언트 : LiveCharts, LiveCharts.Wpf, Newtonsoft.Json, sqlite-net-pcl, System.Management
